CrossWeave: Cross-Modal Scene and Instance Retrieval from Sparse 2D-3D Alignment

Advances in Neural Information Processing Systems (NeurIPS), 2026
Main Track Poster 📌

Aadith Warrier¹, Gnana Prakash Punnavajhala¹, Siddharth Tourani²,
Muhammad Haris Khan³, Avinash Sharma⁴, Madhava Krishna¹

¹IIIT Hyderabad, India ²University of Heidelberg, Germany ³MBZUAI, UAE ⁴IIT Bombay, India

arXiv Code

NeurIPS

TL;DR

Instead of whole scenes or objects, CrossWeave trains on patch-point correspondences, the smallest unit of alignment.

As a result, a single model can flexibly encode scene and object level embeddings, and sets the state of the art on both benchmarks of cross-modal scene and instance retrieval.

Abstract

Cross-modal scene and instance retrieval aims to retrieve a corresponding 3D environment or object given query 2D images, serving as a foundational mechanism for spatial reasoning in robotics and AR/VR. Existing methods achieve this by learning alignment only at the level of whole scenes or objects, which provides no supervision for the fine-grained local structure within them. In this work, we show that supervision on a set of sparse 2D-3D correspondences, without scene- or instance-level contrastive objectives, is sufficient to train a single model for both scene- and instance-level retrieval. Specifically, we propose CrossWeave, a novel framework for cross-modal retrieval that learns sparse patch-point alignment, which alone outperforms existing methods. An optimal transport-based aggregator over the aligned features gives further gains by clustering structurally redundant regions, freeing descriptor capacity for semantically distinct local features. CrossWeave achieves state-of-the-art performance on both scene- and instance-level retrieval on ScanNet and 3RScan with a single model, whereas existing methods require separate models for each task. Our results suggest that whole-scene encoding is unnecessary for cross-modal retrieval and that sparse local correspondence supervision is a more effective and flexible alternative.

Method

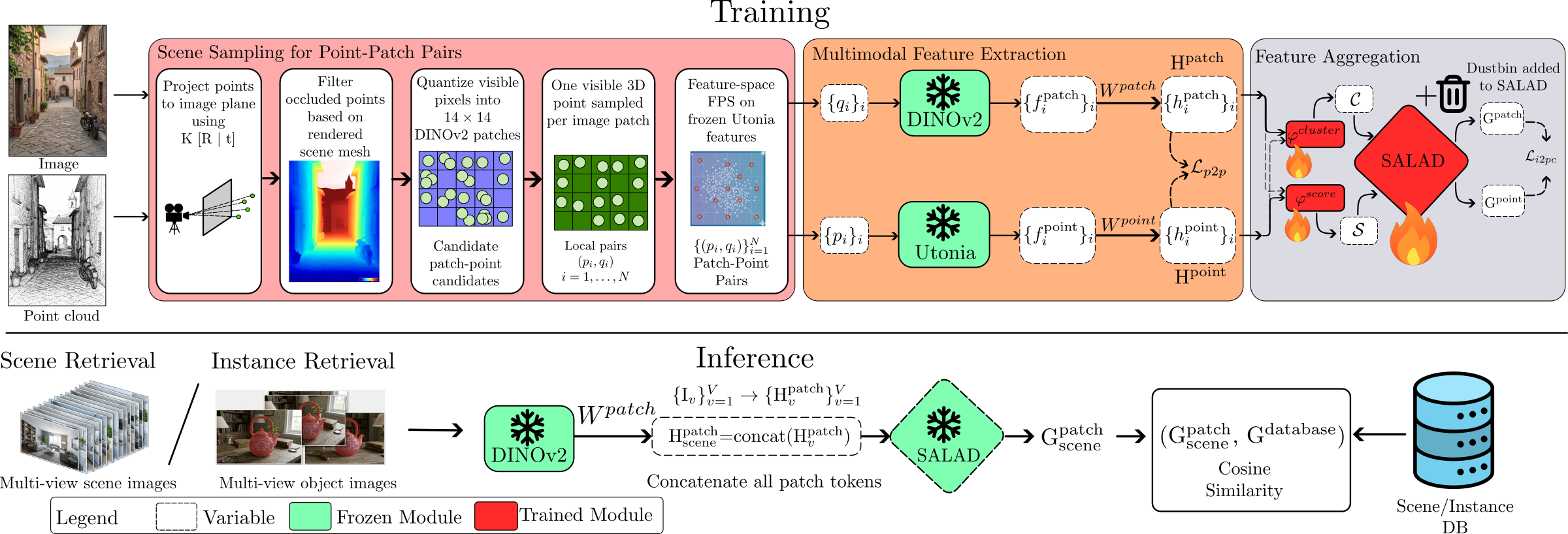

CrossWeave overview: scene sampling, multimodal feature extraction and feature aggregation during training, and the shared pipeline used for scene and instance retrieval at inference — **Overview of CrossWeave.** Top: training from sparse patch-point pairs. Bottom: the same model used for scene and instance retrieval at inference.

CrossWeave learns cross-modal retrieval representations from sparse image patch-3D point correspondences rather than scene- or instance-level labels. Given calibrated RGB-D observations and a reconstructed 3D map, visible patch-point pairs are obtained by projecting 3D points into the image plane, filtering occluded points using rendered depth, quantizing valid pixels into DINOv2 patch tokens, and selecting a compact semantically diverse subset using feature-space farthest point sampling. Frozen encoders extract local patch and point features, which are projected by learnable projection matrices W^patch and W^point into a shared embedding space. A shared SALAD aggregator then maps variable-sized sets of local features into fixed-dimensional descriptors. Training combines a local patch-point L_p2p contrastive loss with an aggregated image-point-cloud contrastive loss L_i2pc, preserving fine-grained alignment while organizing local evidence into retrieval-ready descriptors. At inference, the same encoders and projection heads serve both tasks: SALAD descriptors are used for scene retrieval and mean-pooled local features for instance retrieval.

Sparse local supervision. Training uses a compact, semantically diverse set of visible patch-point pairs instead of whole scenes, with no scene- or instance-level labels.
Two contrastive losses. L_p2p aligns each image patch with its 3D point, and L_i2pc aligns the SALAD-aggregated image and point-cloud descriptors.
One model, two tasks. The same trained network handles both scene and instance retrieval, using SALAD descriptors for scenes and local features for instances.

Results

Bold: best, underline: second best. ^† Trained on additional datasets (ArkitScenes + MultiScan). CrossOver (Updated): CrossOver retrained with the same Utonia 3D backbone as CrossWeave.

Cross-Modal Scene Retrieval

CrossWeave outperforms all baselines on both datasets at every rank. On ScanNet it reaches 61.54 Top-1 recall, 21.16 points above CrossOver (Updated). Since CrossOver (Updated) uses the same Utonia backbone, this suggests that the gain comes from sparse patch-point supervision rather than a stronger 3D encoder. On 3RScan, Top-1 recall rises from 23.57 to 46.50.

Method	ScanNet			3RScan
Method	Top-1	Top-5	Top-10	Top-1	Top-5	Top-10
CrossOver	22.44	61.86	75.32	19.11	58.60	77.07
CrossOver^†	19.87	58.01	74.36	17.83	51.59	73.25
CrossOver (Updated)	40.38	90.06	96.47	23.57	66.88	84.71
CrossWeave (Ours)	61.54	99.36	100.0	46.50	85.99	92.36

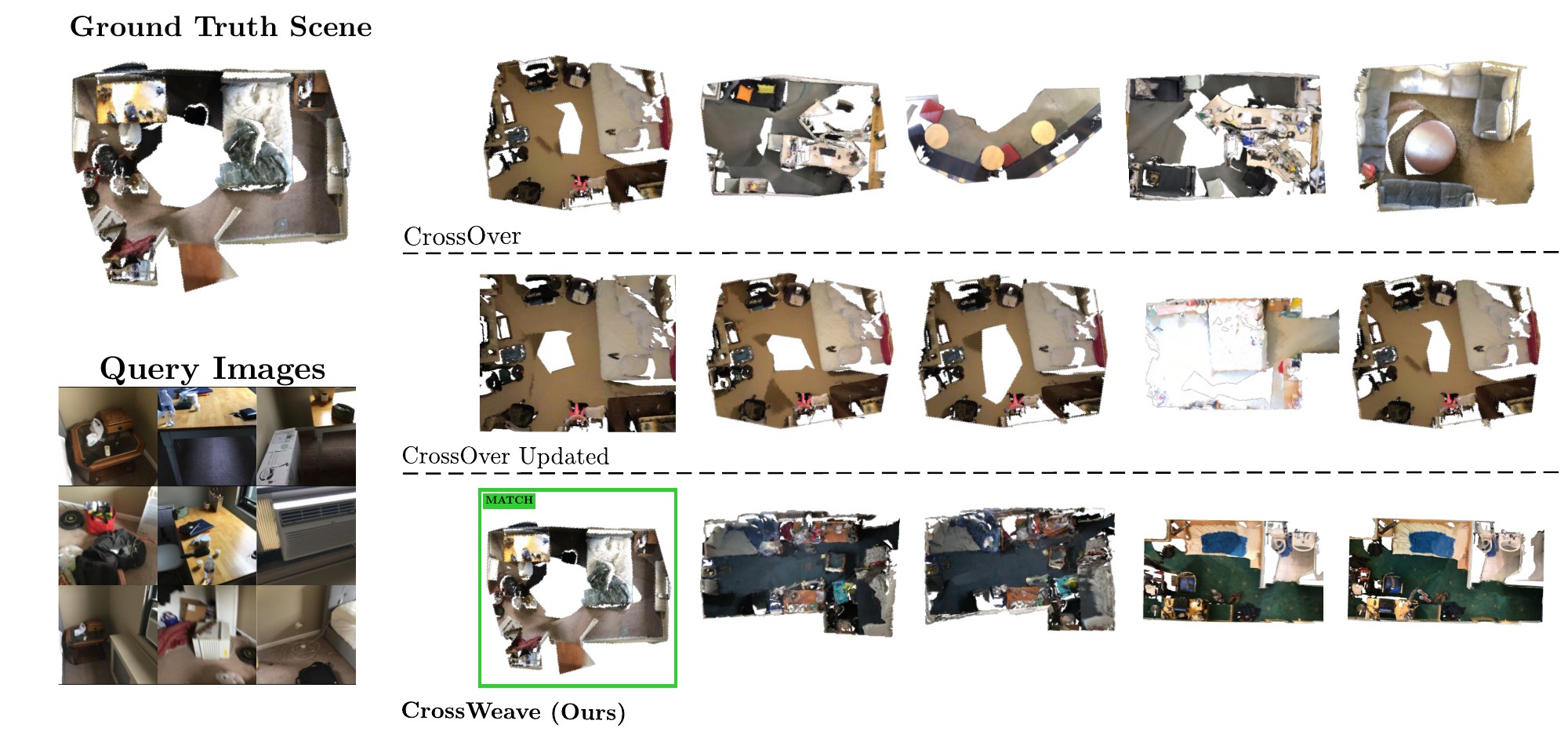

Top-5 scene retrievals of CrossOver, CrossOver (Updated) and CrossWeave on ScanNet scene0699_00 — Qualitative comparison of cross-modal scene retrieval on ScanNet. Given a set of query RGB images, each model retrieves the most similar 3D scenes from the database. The ground-truth scene is shown on the left, and retrieved scenes are ordered by similarity from left to right. CrossOver and CrossOver (Updated) fail to retrieve the correct scene within the top five results, while CrossWeave retrieves it at rank 1. The remaining retrieved scenes are also semantically consistent, indicating that CrossWeave learns descriptors that capture both local cross-modal correspondences and global scene context.

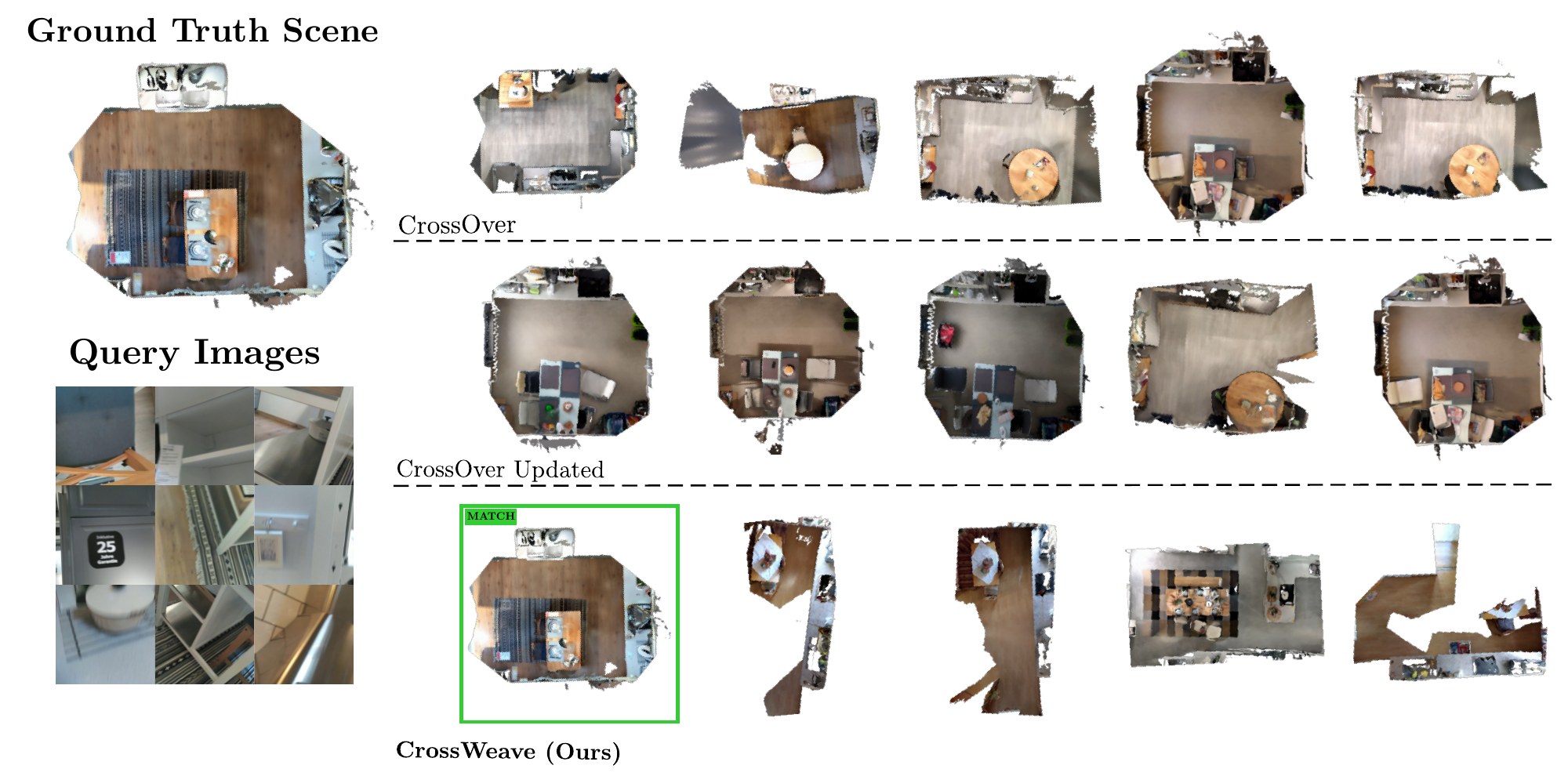

Top-5 scene retrievals of CrossOver, CrossOver (Updated) and CrossWeave on a 3RScan kitchen and dining scene — Retrieval results on a 3RScan kitchen and dining scene. CrossWeave demonstrates superior discriminative ability by retrieving the exact scene at rank 1 from highly localized query images, whereas both baseline models completely fail to place the correct match within their top 5 retrievals.

Cross-Modal Instance Retrieval

Each query object is retrieved among the objects of its own scene. Top-k is computed within each scene and averaged over scenes; R@k% is the percentage of scenes in which at least k% of the objects are retrieved correctly at Top-1. The same single model gives the best instance retrieval: 78.77 Top-1 on ScanNet and 73.50 on 3RScan. The gap widens at stricter thresholds, with R@75% improving over CrossOver (Updated) by 18.27 points on ScanNet and 14.65 points on 3RScan.

Method	ScanNet					3RScan
	Instance Retrieval		Scene-Level Recall			Instance Retrieval		Scene-Level Recall
	Top-1	Top-3	R@25%	R@50%	R@75%	Top-1	Top-3	R@25%	R@50%	R@75%
CrossOver	63.58	88.71	96.79	80.77	31.09	58.88	84.24	90.45	71.97	28.03
CrossOver^†	63.42	88.55	96.79	80.77	31.09	57.09	84.58	89.81	63.06	24.84
CrossOver (Updated)	70.94	92.39	99.36	88.14	49.68	66.80	90.85	97.45	87.90	35.03
CrossWeave (Ours)	78.77	94.05	98.40	88.78	67.95	73.50	92.73	98.09	92.99	49.68

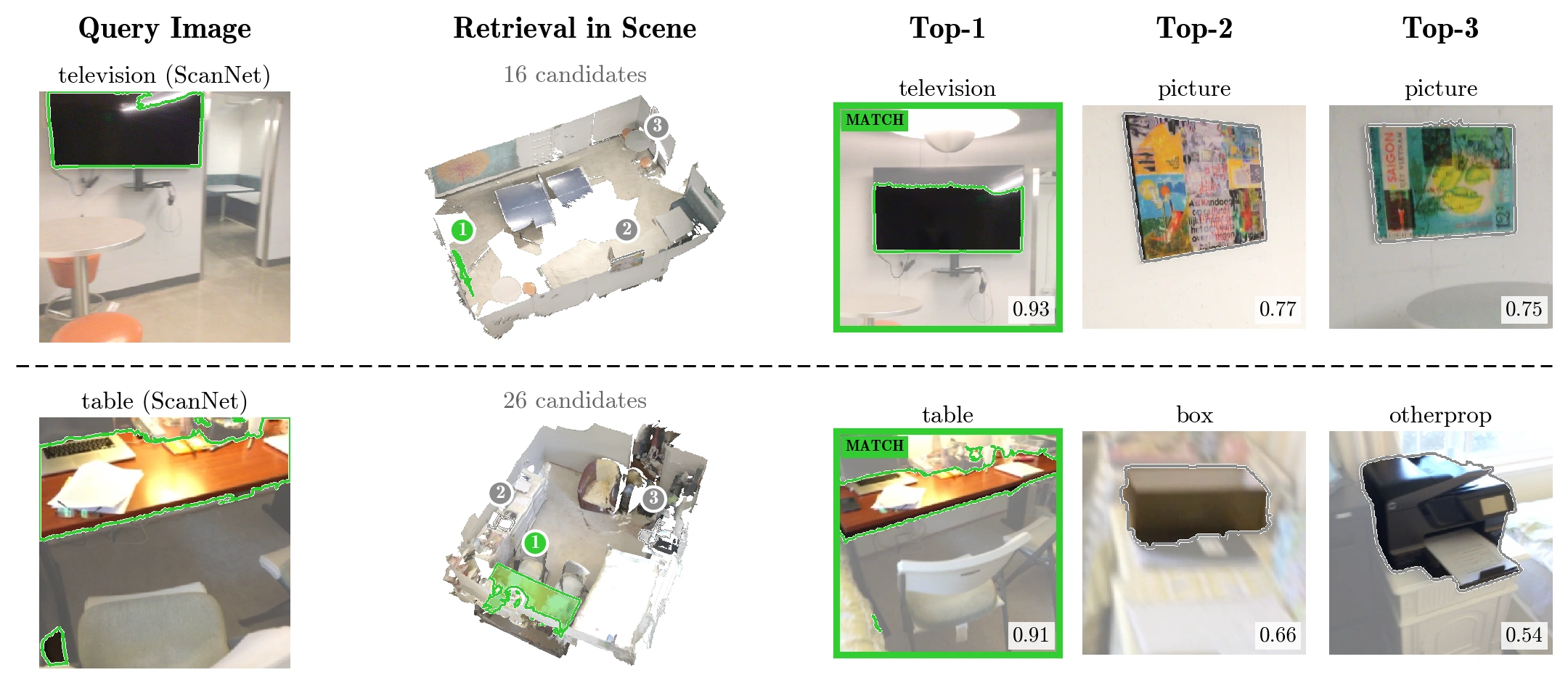

Instance retrieval on ScanNet: a masked television and a masked table are each matched at Top-1 among 16 and 26 candidate objects in their scenes — Qualitative instance retrieval on ScanNet. For each query view with its instance mask (left), CrossWeave ranks the instances of the same scene (middle) by cosine similarity. The Top-3 retrievals are shown with their similarity scores, and the correct match is outlined in green.

Ablation: Training Losses

L_p2p alone already gives strong instance retrieval but weak scene retrieval. Adding L_i2pc with mean pooling improves scene Top-1, and replacing mean pooling with SALAD improves it further, so both the aggregation objective and the aggregation module matter for scenes. Mean pooling with both losses gives the highest instance Top-1, but its scene Top-1 is 9.3 (ScanNet) and 15.9 (3RScan) points lower; the HYBRID model gives the best trade-off across both tasks.

Agg.	L_i2pc	L_p2p	Feats	ScanNet			3RScan
Agg.	L_i2pc	L_p2p	Feats	Scene Top-1	Inst. Top-1	Inst. R@75%	Scene Top-1	Inst. Top-1	Inst. R@75%
Mean	✗	✓	LOCAL	47.12	78.96	70.51	27.39	73.30	47.13
Mean	✓	✓	LOCAL	52.24	79.63	71.15	30.57	73.62	49.04
SALAD	✓	✗	SALAD	57.37	73.33	56.09	43.95	66.98	38.22
SALAD	✓	✓	HYBRID (CrossWeave)	61.54	78.77	67.95	46.50	73.50	49.68

Ablation: Retrieval Features

Aggregated SALAD features work best for scene retrieval, while local features work best for instance retrieval. CrossWeave therefore uses SALAD for scenes and local features for instances (HYBRID).

Feats	ScanNet			3RScan
Feats	Scene Top-1	Inst. Top-1	Inst. R@75%	Scene Top-1	Inst. Top-1	Inst. R@75%
SALAD	61.54	77.04	66.67	46.50	70.01	43.31
LOCAL	48.40	78.77	67.95	28.66	73.50	49.68
HYBRID (CrossWeave)	61.54	78.77	67.95	46.50	73.50	49.68

Ablation tables mark only the best result in bold. Agg.: aggregation used during training (mean pooling or SALAD). L_i2pc: image-point-cloud aggregation loss; L_p2p: local patch-point alignment loss. Feats: SALAD (aggregated), LOCAL (mean-pooled patch and point features), or HYBRID (SALAD for scene, LOCAL for instance). The feature ablation uses CrossWeave trained with both losses.

Additional Experiments

Comparison with SceneGraphLoc

Following the SceneGraphLoc protocol, each query image is ranked against N candidate scenes; Top-k is the percentage of queries with the correct scene in the top k. SceneGraphLoc relies on ground-truth scene graphs at inference, whereas CrossWeave needs only a single image and a raw point cloud. CrossWeave still matches it at Top-1 with 10 candidates and exceeds it at Top-5 and Top-10 for both pool sizes, trailing only at Top-1 with 50 candidates.

Method	10 candidates			50 candidates
Method	Top-1	Top-5	Top-10	Top-1	Top-5	Top-10
SceneGraphLoc	53.60	81.90	92.80	30.20	50.20	61.20
CrossOver	46.00	77.97	90.58	18.69	39.16	51.62
CrossWeave (Ours)	53.60	93.10	100.0	27.50	60.20	76.50

Robustness to Noisy Instance Masks

We replace ground-truth instance masks with imperfect ones. 2D masks come from MobileSAM prompted with a single click inside the object, keeping the prediction with the highest IoU to the ground truth. 3D masks are corrupted with boundary bleed into neighboring background or objects and contiguous chunk dropout, at a similar IoU degradation. Under combined 2D+3D noise, Top-1 drops by about 6.5 points on ScanNet and 12.2 points on 3RScan, with most of the loss at the stricter R@75% threshold.

Masks	ScanNet					3RScan
Masks	Top-1	Top-3	R@25%	R@50%	R@75%	Top-1	Top-3	R@25%	R@50%	R@75%
Ground truth	78.77	94.05	98.40	88.78	67.95	73.50	92.73	98.09	92.99	49.68
Noisy 2D	75.75	93.02	97.44	88.14	62.50	68.00	89.95	97.45	88.54	34.39
Noisy 3D	75.33	92.91	97.12	87.50	63.46	65.65	88.79	96.82	84.08	32.48
Noisy 2D + 3D	72.29	91.86	97.12	85.90	55.45	61.28	86.11	95.54	76.43	26.75

Number of Query Views

Since CrossWeave aggregates any number of views, we sweep the number of query images for scene retrieval. Most of the gain comes between 3 and 10 views; beyond 10 views, Top-1 recall still improves by up to 2.56 points on ScanNet and 4.46 points on 3RScan. The main results use 10 views.

ScanNet 3RScan
